plate rolling machine for ship building industry

Home / Product center / Special Rolling Machine / plate rolling machine for ship building industry

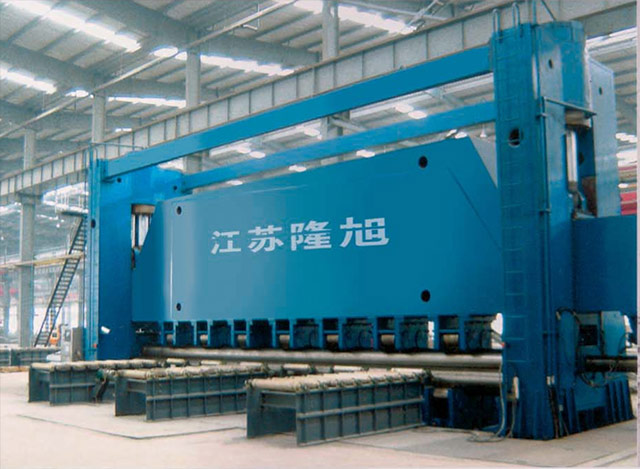

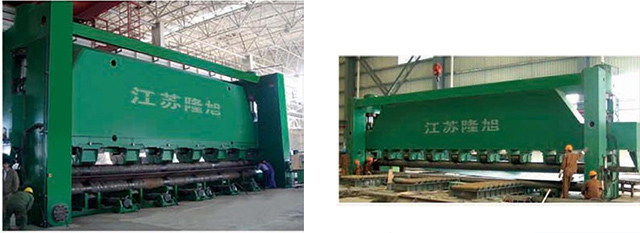

plate rolling machine for ship building industry


PERFORMANCE FEATURES: The form of the ship plate rolling machine can be divided into following types:

1、Symmetrical  form:the up working roller can make up and down movement in vertical direction,while the position of the two lower rollers keep unchanged.

2、Lower roller whole horizontal down adjusting form :the up roller move up and down in vertical direction  and the lower roller move in horizontal direction  whole.

3、Lower roller respectively down adjusting form :the up roller move up and down in vertical direction  and the lower roller move in horizontal direction  respectively.

4、Up roller universal form:up working roller can make up and down movement in vertical direction  and also can move in horizontal direction, while the position of the two lower rollers keep unchanged.

Technical parameter:

規格 型號 Model
最大卷 板厚度 Max. Thick ness of coiled plate (mm)
最大卷 板寬度

Max. Width of coiled plate (mm)

板材 屈服 極限 Yield ing limit of sheet meta (mm )

卷板 速度 Coil ing speed (m/ min )

滿載 最小 卷板 直徑 Min. Full loading diameter of coiled plate (mm)
上軸 直徑 Diameter of upper roller (mm)
下軸 直徑 Diameter of bottom roller (mm)
上托輥 直徑 Upper roller diameter (mm)
下托輥 直徑 Lower roller diameter (mm)
下輥中 心距 Central distance between bottom shafts(mm)
主電機 功率 Power of main motor (kW)
液壓電 機功率 Power of hydraulic motor (kW)
W11S -20X 8000
20
8000
245
4
5000
370
320
380
320
420
45
22
W11S -25X 10000
25
10000
235
4
6000
420
360
360
300
540
75
30
W11S -25X 12000
25
12000
235
4
10000
420
370
360
300
600
75
37
W11S -20X 12500
20
12500
235
4
R 500
380
320
350
270
440
55
22
W11S -30X 12500
30
12500
235
4
R 600
480
440
400
360
650
110
55

Previous: Upper roller universal plate rolling Machine for trailer    Next:暫無 return
